MTX400 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Multicore)

MTX400 0.6/1 kV HEPR Insulated, LSOH (SHF1) Sheathed, Screened Flame Retardant Power & Control Cables (Multicore)

Application
These cables are used for fixed installations on ships and offshore units in all locations and on open deck. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are flame retardant, low smoke & halogen free.

Standards
 DIN 89160/98
 IEC 60092-353
 IEC 60332-1
 IEC 60332-3-22
 IEC 60754-1/2
 IEC 61034

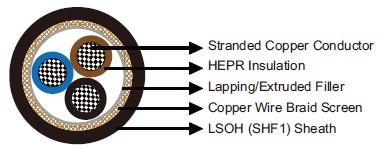

Construction
 Conductors: Class 2 stranded copper conductor.
 Insulation: HEPR.
 Inner Covering: Lapping or extruded filler.
 Overall Screen: Copper wire braid.
 Outer Sheath: LSOH (SHF1).

Core Identification
Two cores: Black, Blue.
Three cores: Black, Blue, Brown.
Four cores: Black, Blue, Brown, Black.
Five cores: Black, Blue, Brown, Black, Black.
Multi cores: All cores natural coloured, printed with numbers, starting in center with number 1.
Cables with 3 cores and more also with green/yellow core (has to be stated in order).

Mechanical and Thermal Properties
Bending Radius for Fixed Installations: 6×OD
Temperature Range: -20℃ ~ +75℃

Dimensions and Weight

Part No.

Construction
No. of cores×Cross
section(mm²)

Nominal Insulation
Thickness mm

Nominal Sheath Thickness mm

Nominal Overall
Diameter mm

Nominal Weight kg/km

MTX400-1G7MZ1-R-2C1.5

2×1.5

0.7

1.2

11.3

180

MTX400-1G7MZ1-R-2C2.5

2×2.5

0.7

1.2

12.3

220

MTX400-1G7MZ1-R-2C4

2×4

0.7

1.3

13.3

280

MTX400-1G7MZ1-R-2C6

2×6

0.7

1.3

15.3

380

MTX400-1G7MZ1-R-2C10

2×10

0.7

1.4

17.0

500

MTX400-1G7MZ1-R-2C16

2×16

0.7

1.5

19.5

710

MTX400-1G7MZ1-R-2C25

2×25

0.9

1.6

22.0

1020

MTX400-1G7MZ1-R-3C1.5

3×1.5

0.7

1.2

11.8

210

MTX400-1G7MZ1-R-3C2.5

3×2.5

0.7

1.2

12.8

260

MTX400-1G7MZ1-R-3C4

3×4

0.7

1.3

13.8

330

MTX400-1G7MZ1-R-3C6

3×6

0.7

1.3

15.8

450

MTX400-1G7MZ1-R-3C10

3×10

0.7

1.4

18.0

620

MTX400-1G7MZ1-R-3C16

3×16

0.7

1.5

20.5

870

MTX400-1G7MZ1-R-3C25

3×25

0.9

1.7

23.8

1280

MTX400-1G7MZ1-R-3C35

3×35

0.9

1.8

26.5

1680

MTX400-1G7MZ1-R-3C50

3×50

1.0

2.1

29.8

2180

MTX400-1G7MZ1-R-3C70

3×70

1.1

2.0

34.8

3020

MTX400-1G7MZ1-R-3C95

3×95

1.1

2.3

39.3

4050

MTX400-1G7MZ1-R-3C120

3×120

1.2

2.5

43.3

5000

MTX400-1G7MZ1-R-4C1.5

4×1.5

0.7

1.2

12.3

240

MTX400-1G7MZ1-R-4C2.5

4×2.5

0.7

1.3

14.3

300

MTX400-1G7MZ1-R-4C4

4×4

0.7

1.3

15.3

430

MTX400-1G7MZ1-R-4C6

4×6

0.7

1.4

17.0

540

MTX400-1G7MZ1-R-4C10

4×10

0.7

1.5

19.5

780

MTX400-1G7MZ1-R-4C16

4×16

0.7

1.6

22.3

1090

MTX400-1G7MZ1-R-4C25

4×25

0.9

1.8

26.3

1630

MTX400-1G7MZ1-R-4C35

4×35

0.9

1.9

29.0

2120

MTX400-1G7MZ1-R-4C50

4×50

1.0

2.0

33.0

2750

MTX400-1G7MZ1-R-4C70

4×70

1.1

2.3

38.8

3900

MTX400-1G7MZ1-R-4C95

4×95

1.1

2.5

43.8

5160

MTX400-1G7MZ1-R-5C1.5

5×1.5

0.7

1.3

13.3

290

MTX400-1G7MZ1-R-5C2.5

5×2.5

0.7

1.3

15.3

400

MTX400-1G7MZ1-R-7C1.5

7×1.5

0.7

1.3

14.3

380

MTX400-1G7MZ1-R-10C1.5

10×1.5

0.7

1.3

17.0

450

MTX400-1G7MZ1-R-12C1.5

12×1.5

0.7

1.4

18.0

500

MTX400-1G7MZ1-R-14C1.5

14×1.5

0.7

1.4

18.5

560

MTX400-1G7MZ1-R-16C1.5

16×1.5

0.7

1.4

19.8

630

MTX400-1G7MZ1-R-19C1.5

19×1.5

0.7

1.5

20.5

710

MTX400-1G7MZ1-R-24C1.5

24×1.5

0.7

1.6

24.0

880
